Induction Heating Equipment for Welding Fabrication and Metal Processing

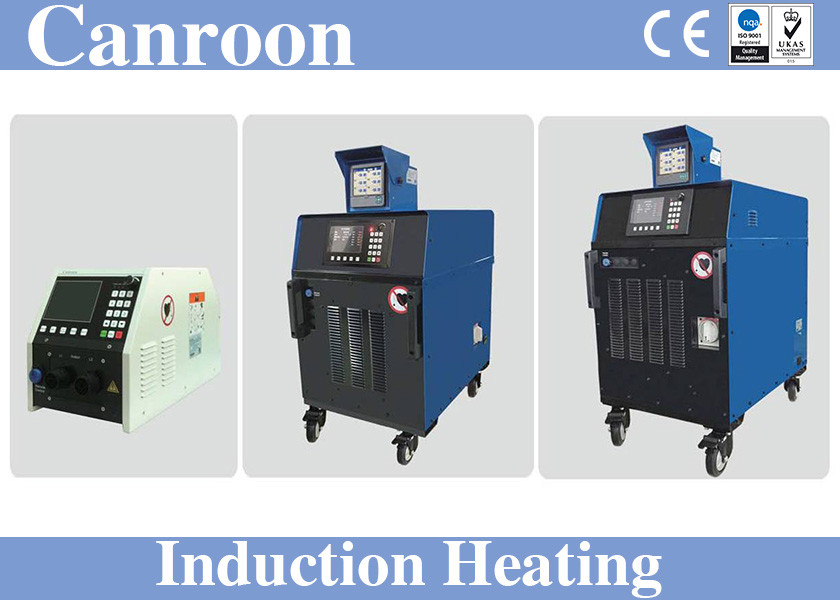

380V 3-Phase Induction Heating Machine For Welding Fabrication

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

The CR2000 induction preheater is an advanced air-cooled heating system designed for welding preheat and industrial fabrication. Capable of reaching temperatures up to 1450°F, it delivers rapid and uniform heating through multiple output channels and six control thermocouples. Compared with conventional heating methods, the CR2000 achieves significantly faster heat-up times and higher process efficiency.

The system features an intuitive operator interface that supports programmable ramp-up and hold cycles, enabling precise temperature control for various applications. It also provides guided operation to help users maximize coil performance and ensure consistent heating quality across different workpieces.

Applications:

With the introduction of theInduction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on

Specifications:

Competitive Advantage:

1. ​Built for the Field: Optional running gear makes CR2000 easy to move across welding sites, fabrication yards, or maintenance zones—ready wherever the job takes you.
2. Smart Temperature Control: Simple, guided programming ensures every weld reaches the right temperature, every time.
3. Precision with Every Degree: Multiple thermocouple inputs monitor the hottest and coolest points, guaranteeing stable and consistent heating quality.
4. Consistent Heating Results: Uniform heat penetration enhances weld integrity and reduces rework.
5. Safety You Can Trust: Open output detection and isolation fault protection stop operation instantly when risks appear.
6. Lowest Operating Costs: No fuel. Minimal insulation costs. Reusable materials dramatically reduce long-term expenses.
7. Gentle on Materials: Induction heats from within—no surface burns, hotspots, or overheating.
8. Fast Heating Performance: Reach temperature faster than conventional methods to accelerate workflow and boost productivity.
9. Cleaner, Safer Worksite: No open flame or hazardous gases—just efficient, controlled induction heating.
10. Over 90% Energy Efficiency: More power goes

Tag:Induction Heating
